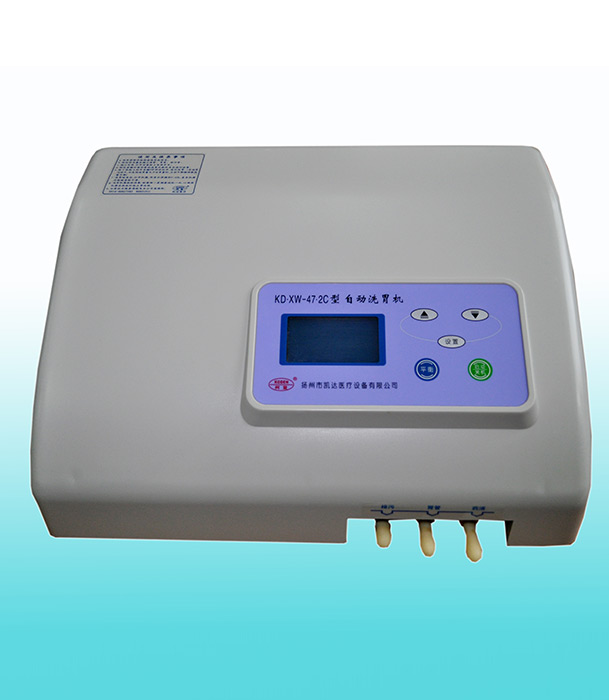

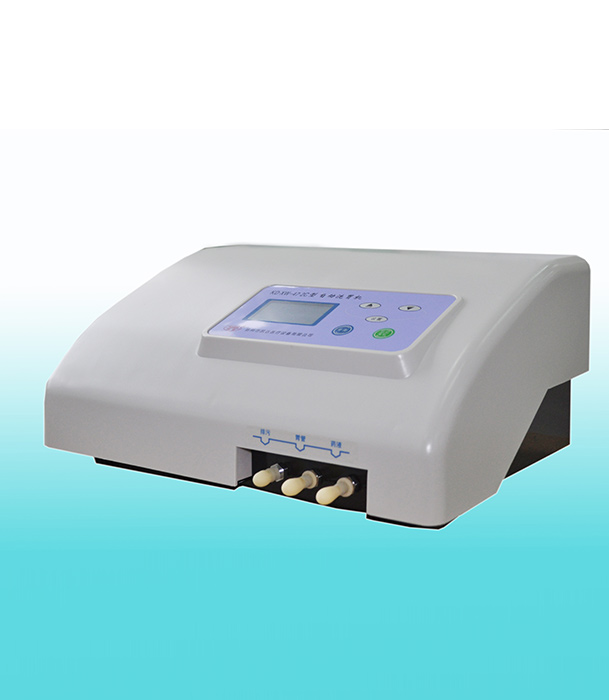

KD·XW-47.2C

FEATURES:

1、Automatic paunch flusher is comprised of pressure pump (air pump), control pipeline, control circuit, framework etc.;

2、This unit adopts pressure sensor and computer SBC to control, real time dynamic parameter LCD display thus to realize the automation of paunch flusher;

3、LCD screen aoumatically display the flushing pressure, in and out liquid flow, flushing status and flushing times;

4、Automatically record the flushing times after getting into work status and will halt when flusing times reach the set value;

5、Big diameter tube to get in and out, ensure there is no block;

6、The paunch in and out pressure and flow rate can be freely set by different patients;

7、Plastics casing with beautiful and generous appearance;

8、Absolute value of pressure: 47KPa～67KPa;

9、Work environment: temperature:+5℃～+40℃, relative humidity: 25℃ no exceeding 80%, atmospheric pressure: 86KPa～106KPa;

10、According to shock proof type and degree, paunch flusher is divided into class Ⅰ device type B application part, run mode is continuous, IPX0, none AP type or APG type common devices;

11、The products meet related requestments of IEC60601-1, IEC60601-1-2.
